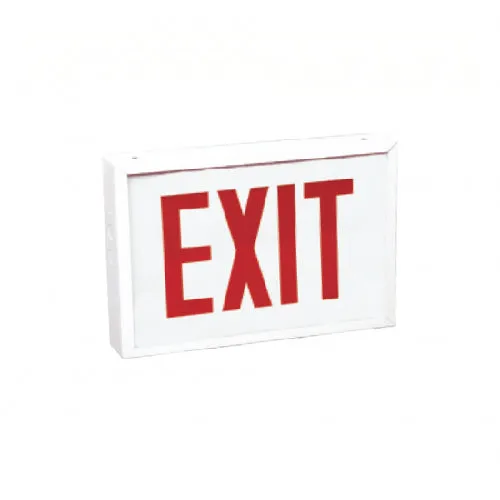

Advantage Environmental Lighting XEM10 & XEM10PU Chicago Approved Incandescent Exit Sign
ILLUMINATION
- 130 volt long-life incandescent lamps for normal operation.
- 6-Volt, 5.4-Watt wedge base incandescent lamps for emergency operation (For CXPU model).
ELECTRICAL
XEM10:
- 120 volt only.
- Charge rate/power “ON” LED indicator light.
XEM10PU:
- Dual 120/277 voltage.
- Charge rate/power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.
- LVD (low voltage disconnect) prevents battery from deep discharge.
- 6V maintenance-free, rechargeable Sealed lead acid battery.
- Internal solid-state transfer switch automatically connects the internal battery to lamps for minimum 90 minute emergency illumination.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
MOUNTING
- Mounting canopy included for top or end mount.
- Universal K/O pattern on back plate for wall mount.
HOUSING
- Durable, powder-coated 20-gauge steel construction in white or black finish.
- Unique design allows double face conversion in the field.
- Open face glass panel with silk-screened letters.
- Arrow configurations must be specified when ordered.
WARRANTY/LISTING
- Five year warranty on all electronics and housing. Battery pro-rated for two years. (CXPU Model)
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes.
- UL listed for damp locations.
