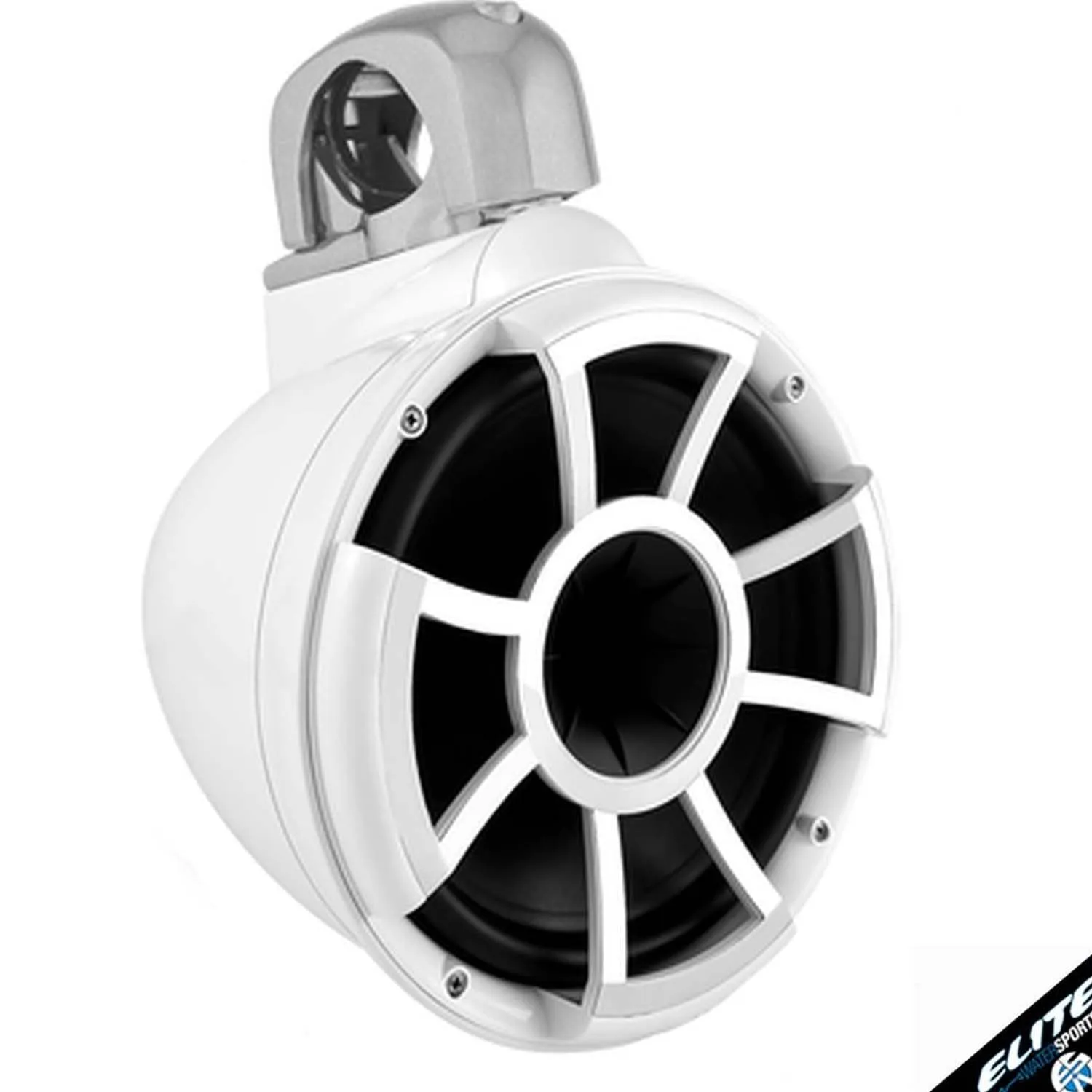

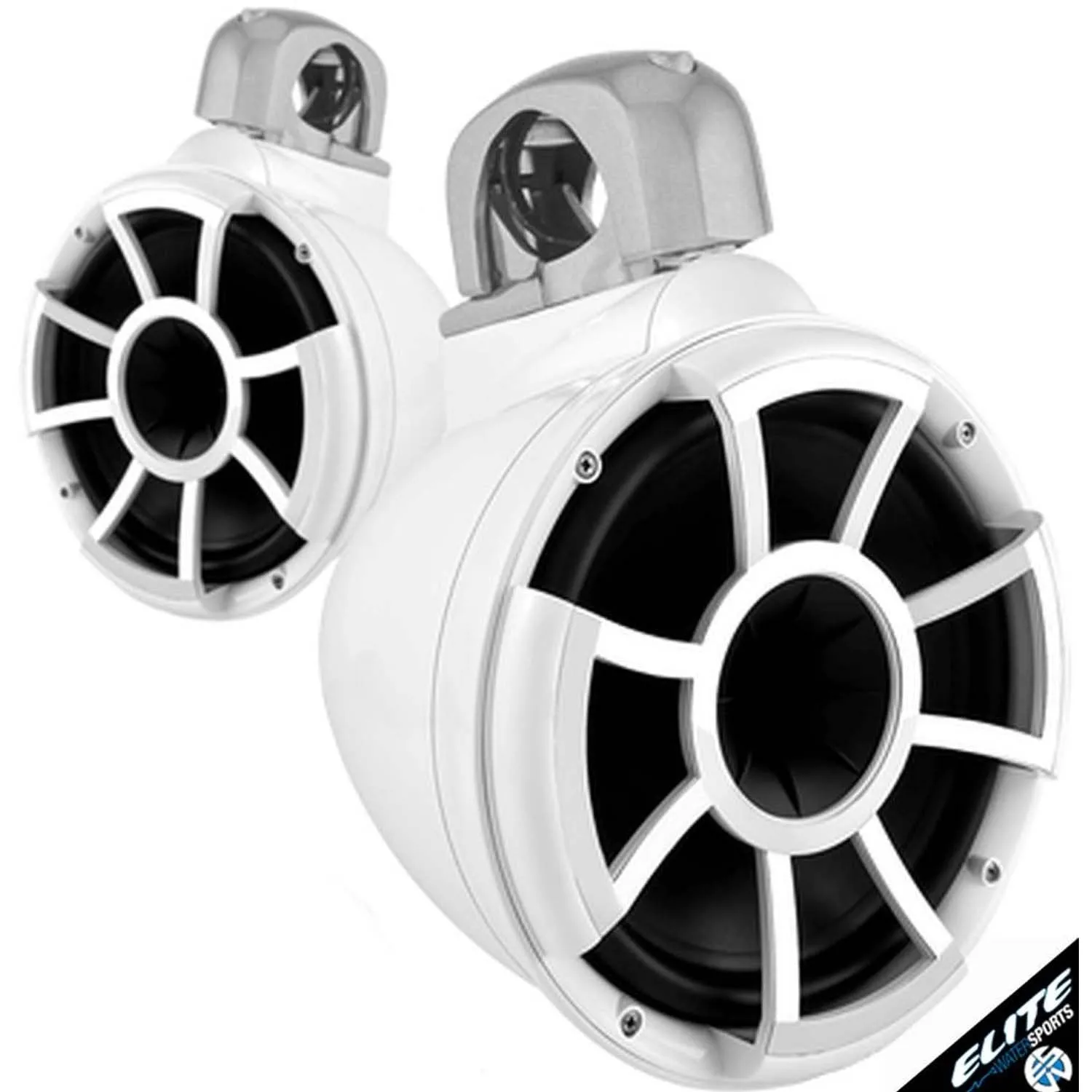

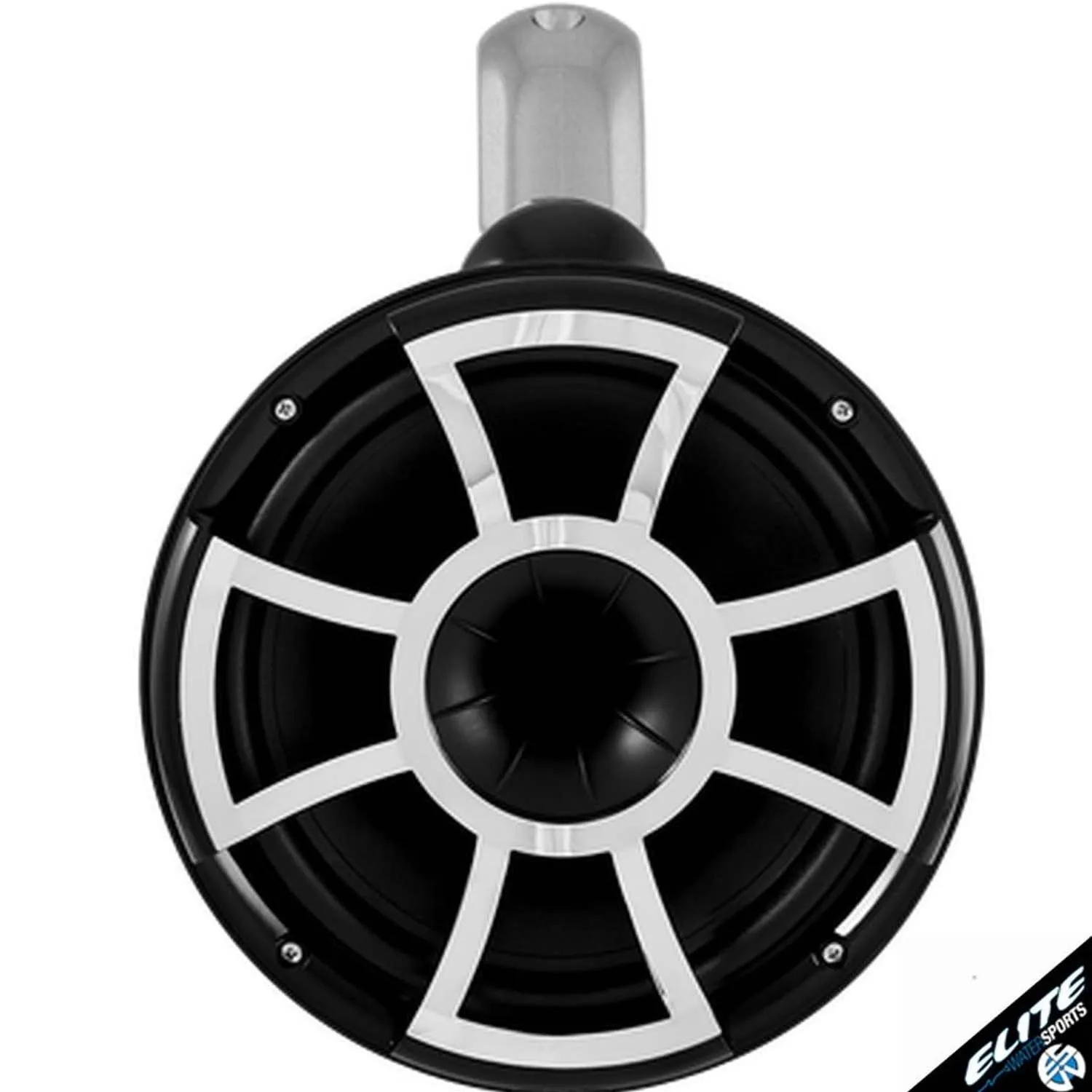

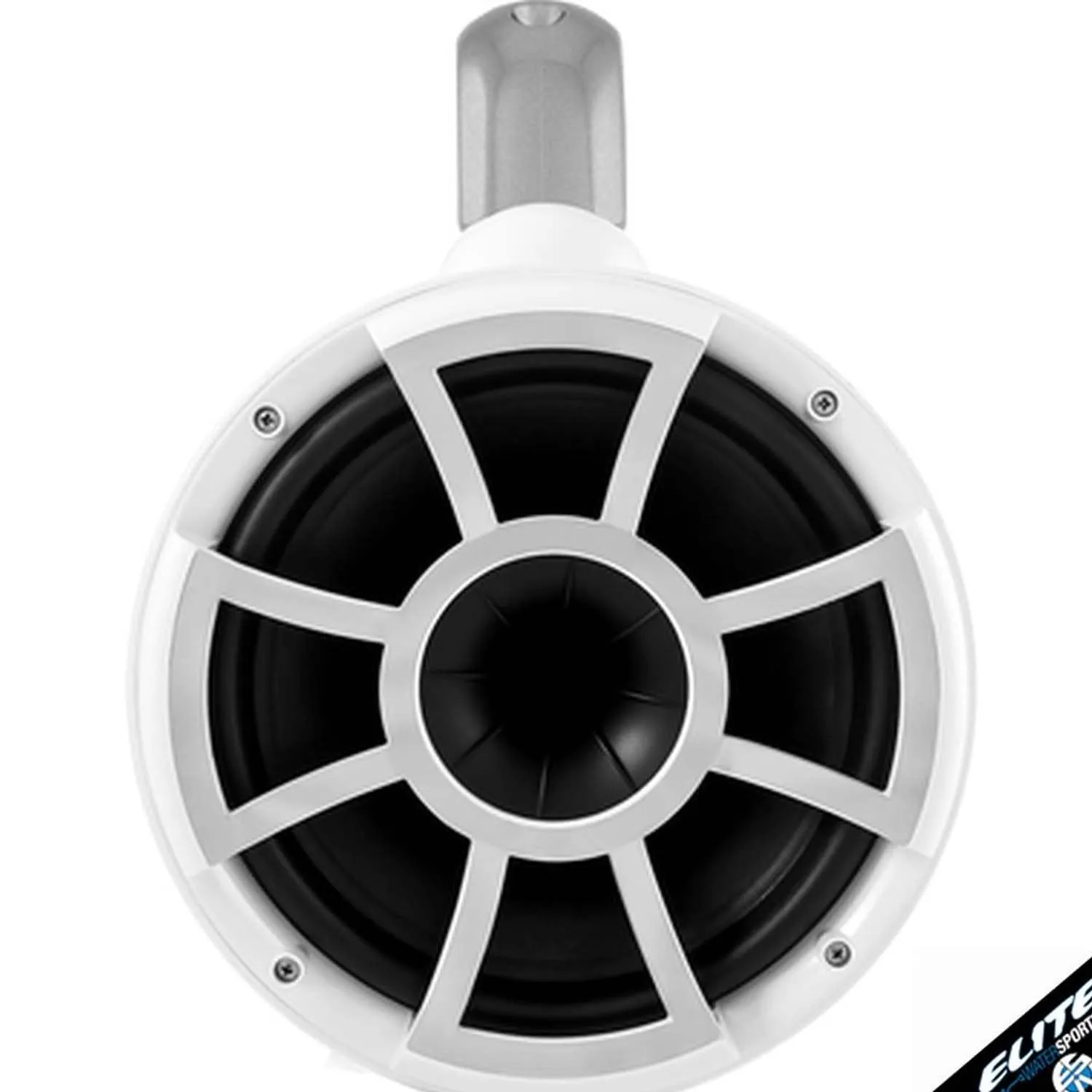

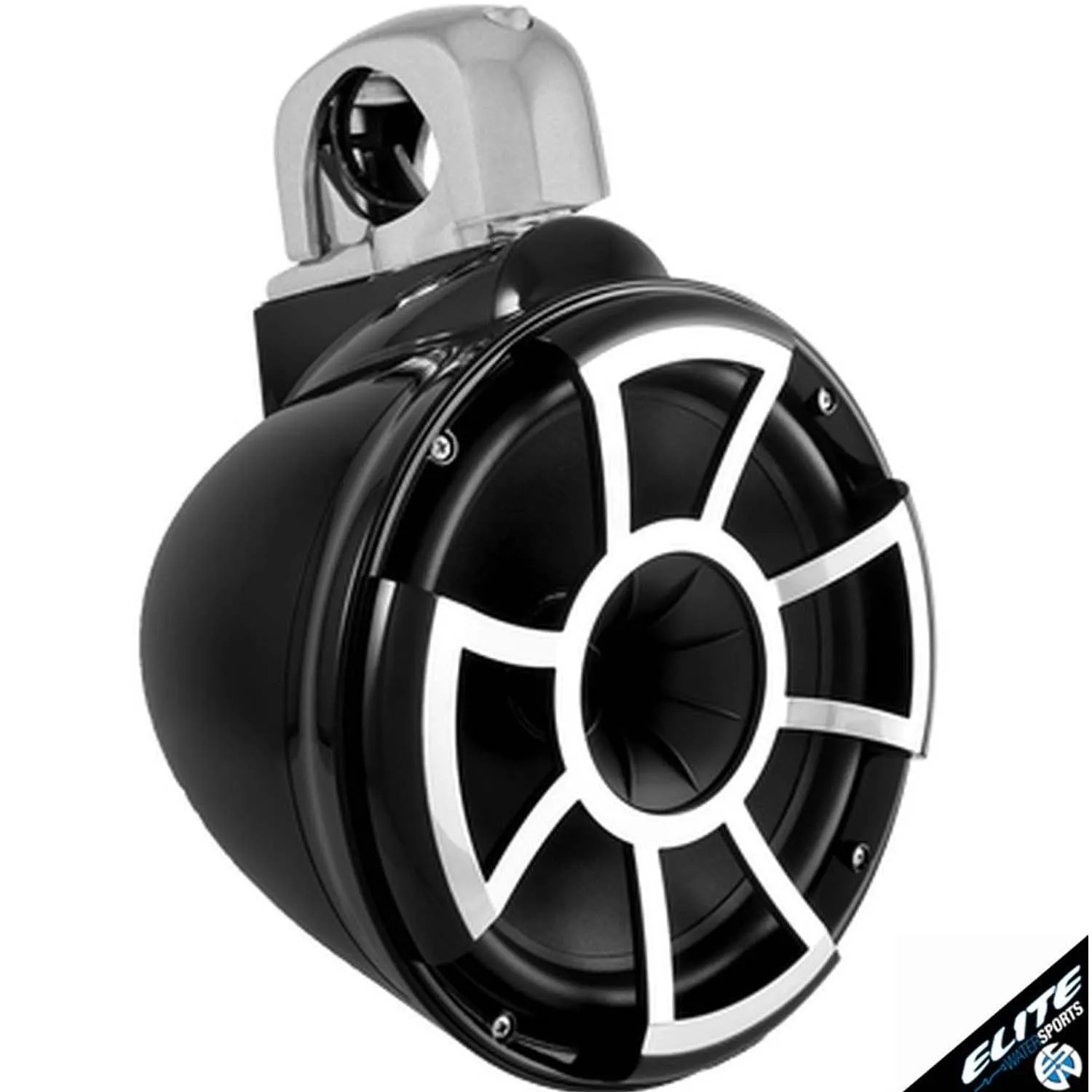

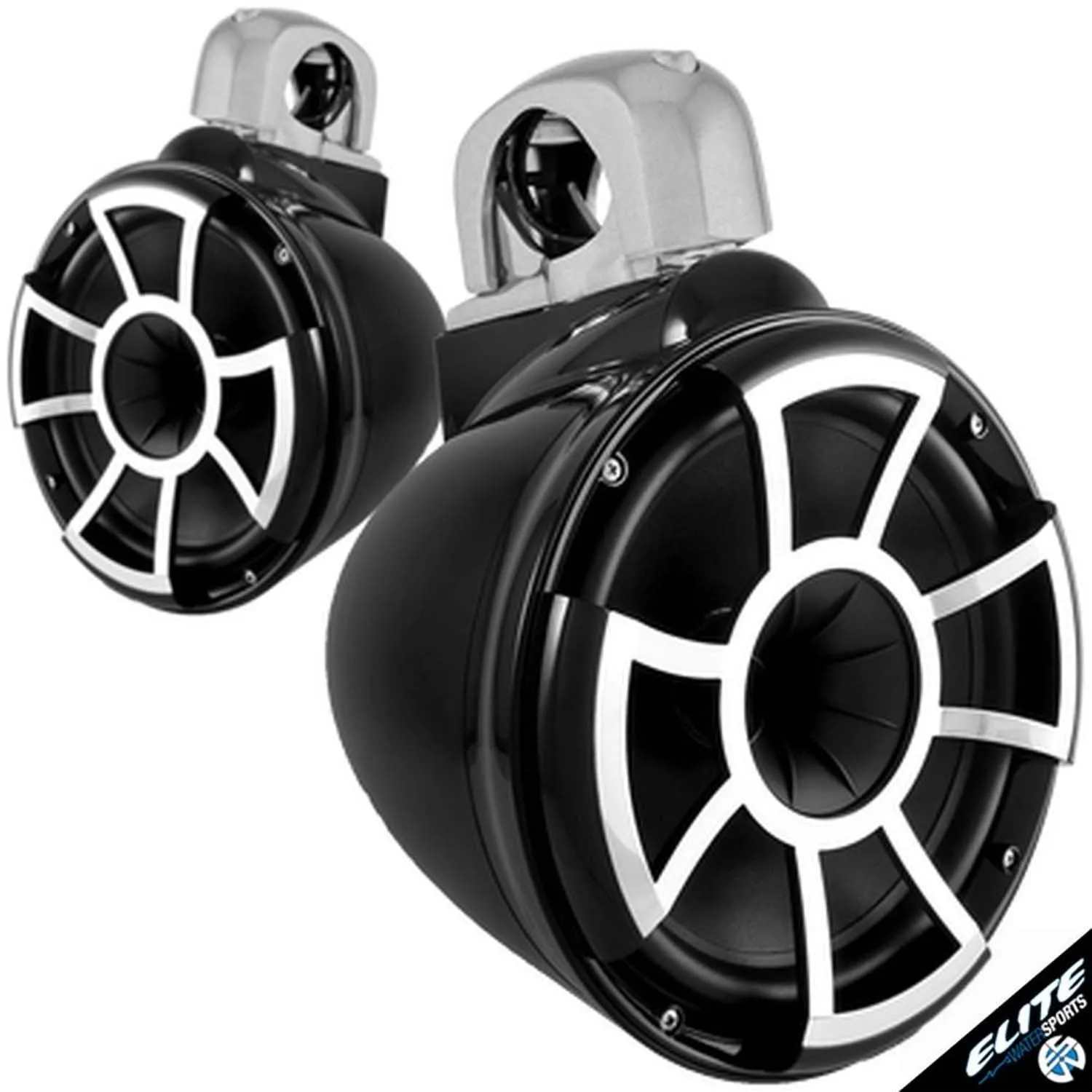

Revolution 10" EFG 4 ohm EFG™ HLCD Tower Speaker
The Revolution™ Series uses our proprietary REV TEC™ technology. Unlike most conventional designs, REV TEC technology provides remarkable volume and amazing full range sound quality on axis and off axis at long distances. Extensive acoustic testing has confirmed these speakers ability to project volume at 80 feet and beyond without any loss of detail or information. Not only does the Revolution series achieve volume and sound quality at a minimum of 80 ft, but with the REV TEC technology, the rider can enjoy quality sound while riding outside the wake and being almost parallel to boat.
Revolution Series is the pinnacle of wakeboard tower speaker design offering the most advanced speaker design anywhere in the world.
Available colors are Gloss White or Gloss Black with UV inhibitors.
REV TEC design features enhanced midbass response at all volume levels with smooth frequency response for amazing near field and wake range sound quality
All Stainless Steel Hardware
Stainless Steel grilles
Reinforced Composite Enclosure
The Revolution™ Series uses our proprietary REV TEC™ technology. Unlike most conventional designs, REV TEC technology provides remarkable volume and amazing full range sound quality on axis and off axis at long distances. Extensive acoustic testing has confirmed these speakers ability to project volume at 80 feet and beyond without any loss of detail or information. Not only does the Revolution series achieve volume and sound quality at a minimum of 80 ft, but with the REV TEC technology, the rider can enjoy quality sound while riding outside the wake and being almost parallel to boat.
Revolution Series is the pinnacle of wakeboard tower speaker design offering the most advanced speaker design anywhere in the world.
Available colors are Gloss White or Gloss Black with UV inhibitors.
REV TEC design features enhanced midbass response at all volume levels with smooth frequency response for amazing near field and wake range sound quality
All Stainless Steel Hardware
Stainless Steel grilles
Reinforced Composite Enclosure
Technical Specs
Need help choosing the right Wetsounds product for you? Contact your nearest .
| Speaker Size | 10 inches |
|---|---|
| Mount Type / Made For | X Mount / Malibu Illusion X and XS towers, and Tige Alpha Z tower |
| Impedance | - |
| RMS Watts | 300 |
| PEAK Watts | 600 |
| Frequency Response (Hz) | - |
| Sensitivity | 92 db at 1watt/1 meter |
| Mid Bass | 10 inch Kevlar reinforced EFG™ cone woofers with polyurethane surround. |
| High Frequency | Pro-Axial™ Driver - Coaxially mounted Titanium Diaphragm High Output |
| Max Input (W) | - |
| Max Output (W) | - |
| Efficiency (dB/W/m) | - |
| Mounting Depth (mm) | - |
| Hang Height | 11 9/16" (293.68mm) |
| Width | 10 5/8" (269.87mm) |
| Depth | 13" (330.20mm) |
| Notes | All specifications are for each REV10 enclosure |
